X6142 Horizontal Miling Arbour Rotary Worktable
- Model
- X6142
Item specifics
- BRAND
- ZOPO CNC
- CONTROL
- MANUAL
- SPINDLE
- HORIZONTAL ARBOUR
Review
Description
X6142
KNEE TYPE MILLING MACHINE
1200/360/470mm
X/Y/Z axis travel
420×1800mm
Worktable size
1500rpm
Spindle speed
2400/2400/900mm/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us

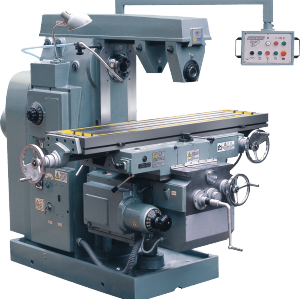

Appearance
Characteristics
Rigidity structure +Stability precision
This horizontal knee type milling machine has high rigidity structure and stable precision. .Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
Extensive Application
Mounted with rod, disc, angle, forming and face milling cutter, the machine can use for flat, bevel, angle, groove and edge processing. The machine can also be milling gears, reamers, spiral grooves, cams and drums instal with indexing accessories and others, which is widely used in machining industries.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1200/360/470 mm
- Distance from spindle nose to table surface
- 40-500 mm
- Distance from spindle center to vertical guideway
- 200 mm
- Distance from table center to vertical guideway
- 280-650 mm
Worktable
Unit
- Worktable size
- 420x1800mm
- T slots
- 3-18*90mm
- Max. load bearing of worktable
- 800kg
Spindle
Unit
- Spindle hole taper
- 7:24 No.50
- Spindle power
- 11KW
- Max. spindle speed
- 1500rpm
Feed
Unit
- Rapid feed speed
- 2400/2400/900mm/min
- Feed speed range
- 22-1100/22-1100/8.3-410mm/min
Machine
Unit
- Machine dimension
- 2522/2262/2047mm
- Machine weight
- 4200kg
