SP2540 Gear head T type ram
- Model
- SP2540
Item specifics
- Brand
- ZOPO Intelligent Equipment
- CNC system
- FANUC/SIEMENS/MITSUBISHI
- Spindle
- Gear head
- Control
- Semi-closed loop control
Review
Description
SP2540
Classic T type ram series
The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries
4200/2900/1000mm
TRAVEL
2500x4000mm
WORKTABLE
6000rpm
SPINDLE SPEED
10/10/10m/min
RAPID FEED RATE
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us

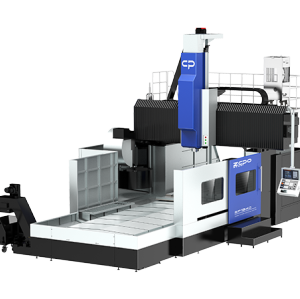

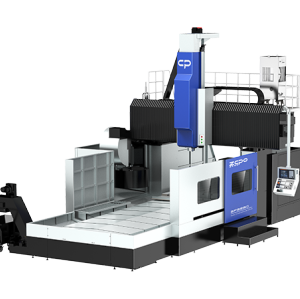

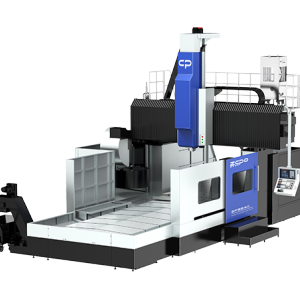

Appearance
Characteristics
Serialized and modular design
High precision and high stability structural design
All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.
- Ram：Optimal central symmetrical spindle box design; hard rail with extra-large cross-section and high rigidity; overall rigidity increased by 20%.
- Worktable：The worktable is hollowed out, and the moving parts are lightweight, which improves the response speed of the worktable.
- Machine body：One-piece casting bed and internal reinforcement rib design ensure stability and high rigidity; simplify assembly process, reduce assembly errors caused by personnel, and improve machine tool stability.
- Beam：The optimal stepped beam and saddle design shifts the overall center of gravity of the spindle box backwards, increasing the machining rigidity.
Easier to use and more powerful control system
Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
- Selection of energy-efficient processing modes
- Tool management function
- Broken tool detection function
- Troubleshooting guide function
- Super powerful human-computer interaction interface
Parameters
Working range
Unit
- X/Y/Z axis travel
- 4200/2900/1000mm
- Distance between two columns
- 3000mm
- Distance from table surface to spindle nose
- 220-1220mm
Worktable
Unit
- Worktable size
- 2500x4000mm
- T-slot size
- 11-28*200mm
- Max. load bearing of worktable
- 18000kg
Spindle
Unit
- Spindle hole taper
- BT50
- Main motor power
- 22/26(wide area)KW
- Spindle speed
- 6000(Gear head)rpm
Feed
Unit
- Max. feed speed
- 8000mm/min
- Rapid feed rate
- 10/10/10m/min
Accuracy
Unit
- Positioning accuracy
- 0.030/0.022/0.020mm
- Re-positioning accuracy
- 0.014/0.012/0.008mm
Machine
Unit
- Machine dimension
- 10400*6800*5700mm
- Machine weight
- 42500kg
