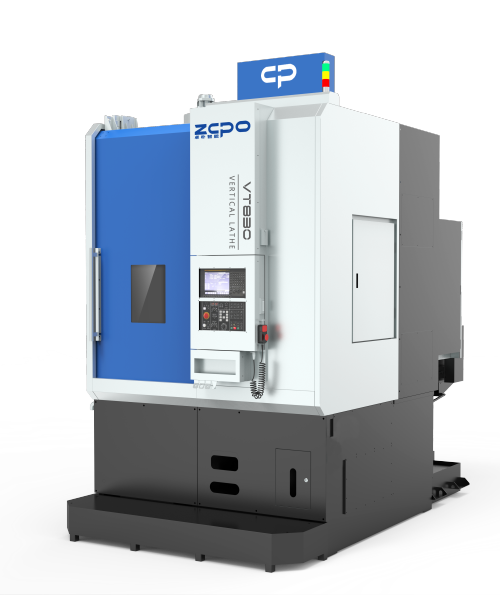

VT830 Heavy cutting
- Model
- VT830
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/GNC/KND
- Spindle Hole Taper
- A2-11
- Control Mode
- Semi-closed loop
Review
Description
VT830
High Rigidity
Heavy cutting
Φ920mm
Max.Swing Over Bed
780mm
Max.Turning Length
Φ830mm
Max.Turning Dia
A2-11
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic

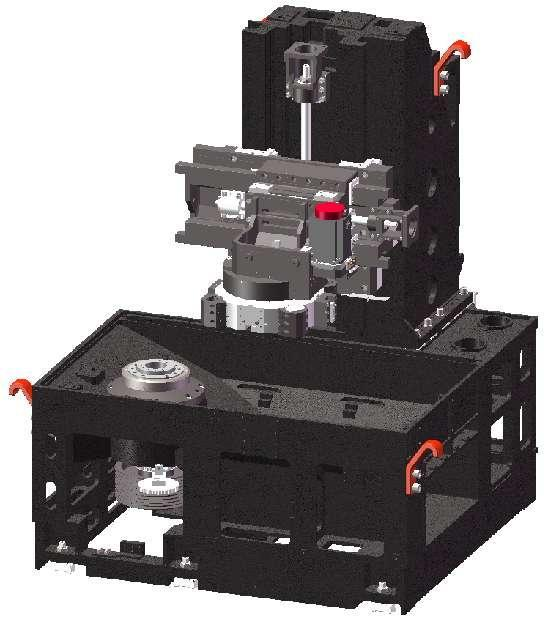

Wear-resistant castings：
The machine bed designed through FEM (Finite Element Analysis) ensures the optimal structure and achieves high stability of the equipment.

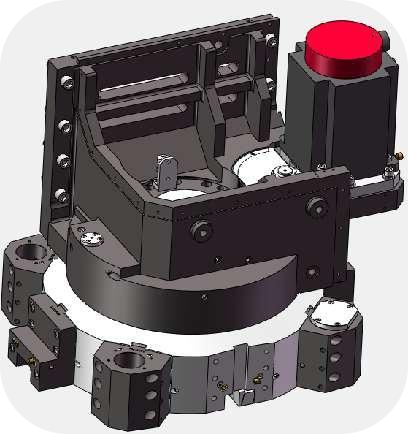

Heavy Duty Large Span Servo Turret
One-piece casting design with greater span and higher center height.
Heavy-loaded High-rigidity Spindle
The combination of high-rigidity double-row tapered roller bearings (NSK) and angular contact ball bearings (NSK) ensures the rigidity and stability of the spindle during processing, can achieve heavy loads, and avoid thermal displacement of the spindle after long-term operation.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ920 mm
- Max.Turning Length
- 780 mm
- Max.Turning Dia
- Φ830 mm
- Max. Swing Over Carriage
- Φ740 mm
- X/Z Axis Travel
- 490/785 mm
Spindle
Unit
- Spindle Hole Taper
- A 2-11
- Max. Passing Bar Dia.
- Φ90 mm
- Spindle Speed Range
- 50-2000 mm
- Power
- 22/30 kW
- Standard Chuck Dia.
- 15'' inch
Machine
Unit
- Machine Dimension
- 2020*3200*3640 mm
- Machine Weight
- 9500 kg
