VMC1370 Belt spindle
- Model
- VMC1370
Item specifics
- BRAND
- ZOPO INTELLIGENT
- CNC system
- FANUC/SIEMENS/MITSUBISHI
- SPINDLE
- Belt spindle
- CONTROL
- Semi-closed loop control
Review
Description
VMC1370
Pan-aluminum processing
Long travel, high speed, best choice for processing large-size aluminum products
1300/700/650mm
X/Y/Z axis travel
680×1500mm
Worktable size
10000rpm
Spindle speed
30/36/24m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us

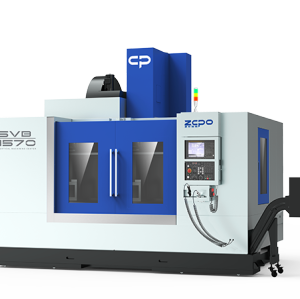

Appearance
Charasteristics
High rigidity, high efficiency, high stability basic structure
Hot sale 8000+ units
Excellent overall performance, high cost performance
- The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
- The base adopts a large-span base structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
High performance spindle
- The spindle box guideway is designed with a large cross-section and the structure is optimized to be the best among similar models. It is equipped with a Z-axis weightless structure to ensure the stability and accuracy of vertical high-speed positioning.
- The Z-axis guideway span is larger than that of traditional models, which greatly improves the contact ratio between the spindle box and the column, ensuring high torque of the spindle during processing.
- The short nose spindle ensures the cutting rigidity of the machine.
Superior processing capabilities
The VMC series machines with stable cutting performance are suitable for automotive parts, 3C industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1300/700/650mm
- Distance from column to spindle center
- 762mm
- Distance from table surface to spindle nose
- 200-850mm
Worktable
Unit
- Worktable size
- 680x1500mm
- T-slot size
- 5-18*125mm
- Max. load bearing of worktable
- 800kg
Spindle
Unit
- Spindle hole taper
- BT40
- Main motor power
- 11/15KW
- Spindle speed
- 10000(Belt)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 30/36/24m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Accuracy
Unit
- Positioning accuracy
- 0.008mm
- Repeat positioning accuracy
- 0.004mm
Machine
Unit
- Machine dimension
- 3550*2800*3060mm
- Machine weight
- 8000kg
