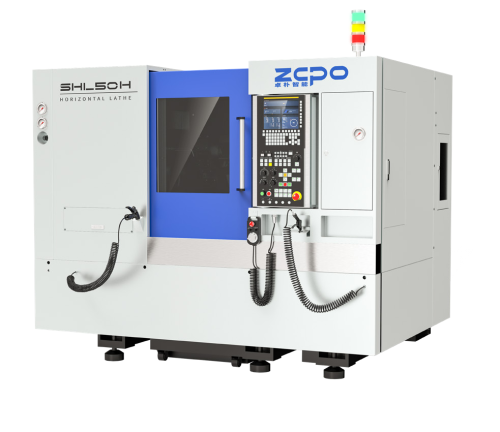

SHL50H Ultra-precision
- Model
- SHL50H
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/GNC/KND
- Spindle Hole Taper
- A2-6
- Control Mode
- Semi-closed loop
Review
Description
SHL50H
Ultra-precision
Turning instead of grinding
Φ520mm
Max.Swing Over Bed
500mm
Max.Turning Length
Φ360mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Hydrostatic spindle
Spindle radial runout ≤ 0.5µm
Precision casting technology
Surface roughness ra ≤ 0.1µm
High dynamic feeding technology
Repeat positioning accuracy ≤ 2µm
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ520mm
- Max.Turning Length
- 500mm
- Max.Turning Dia
- Φ360mm
- Max. Swing Over Carriage
- Φ360mm
- X/Z Axis Travel
- 200/550mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ45mm
- Spindle Speed Range
- 50-4500rpm
- Power
- 11/15kW
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5#
Turret
Unit
- Standard Turret
- 12T（Servo）
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2530*1650*1755mm
- Machine Weight
- 3850kg
