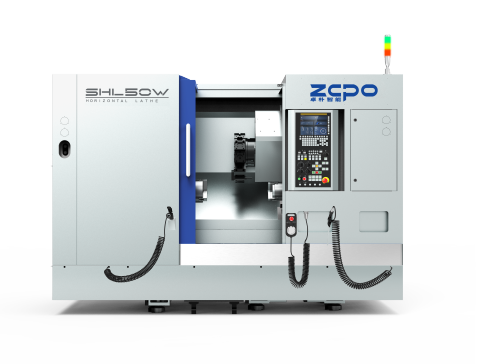

SHL50W Dual spindles Y-axis
- Model
- SHL50W
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/GNC/KND
- Spindle Hole Taper
- A2-6/A2-5
- Control Mode
- Semi-closed loop
Review
Description
SHL50W
High Capability
Dual spindles
Interpolation Y axis
Φ550mm
Max.Swing Over Bed
700mm
Max.Turning Length
Φ350mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Inclined Machine Bed
15° overall stepped inclined bed,
low center of gravity, strong torsion
resistance.
Multiple interfaces reserved for high
expansion capability.
Offset Driven Turret
Offset driven turret frees up
space for sub spindle processing;
High cutting and milling rigidity
with processing quality
Interpolation Y Axis
Interpolation Y axis design
improves machine external
keyway processing for parts
which requires extra precision
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ550mm
- Max.Turning Length
- 700mm
- Max.Turning Dia
- Φ350mm
- Max. Swing Over Carriage
- Φ350mm
- X/Y/Z/B Axis Travel
- 200/±50/760/710mm
Spindle
Unit
- Spindle Hole Taper
- A2-6/A2-5
- Max. Passing Bar Dia.
- Φ50/44mm
- Spindle Speed Range
- 50-4500/50-5000rpm
- Power
- 18/20kW-11/13.2kW
Feed
Unit
- Rapid Feed Rate
- 30/10/30/30m/min
Chuck
Unit
- Chuck size
- 8/6 inch
Turret
Unit
- Standard Turret
- 12T（Driven）
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 3500*1750*1950mm
- Machine Weight
- 5300kg
