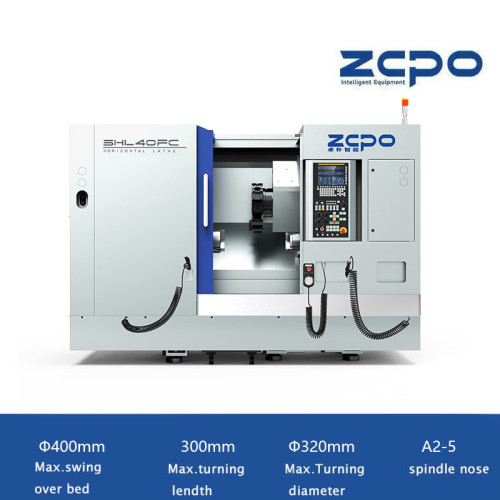

SHL40FC Cost-Effective Gang-Tool Power-Head
- Model
- SHL40FC
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/Siemens/Mitsubishi/GNC/KND
- Spindle Hole Taper
- A2-5
- Control Mode
- Semi-closed loop
Review
Description
SHL40FC
High Capability
Cost-Effective, Compact Design,
Wide Applicability
Φ400mm
Max.Swing Over Bed
300mm
Max.Turning Length
Φ320mm
Max.Turning Dia
A2-5
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Multi Function Integration
Integrate gang tools and milling/turning tools on one machine, reduces the times of transfers and clamping of workpieces between different machines, improves efficiency, and reduces costs.
Quick Tool Change
The tool changing process of the gang tools and milling tools is usually quick, which helps to shorten the processing assistance time.
Flexible Processing
It can adapt to the processing of various shapes and sizes of parts, and can perform both simple turning and complex milling processes.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ400mm
- Max.Turning Length
- 300mm
- Max.Turning Dia
- Φ320mm
- Max. Swing Over Carriage
- Φ160mm
- X/Z Axis Travel
- 460/365mm
Spindle
Unit
- Spindle Hole Taper
- A2-5
- Max. Passing Bar Dia.
- Φ42mm
- Spindle Speed Range
- 50-5000mm
- Power
- 5.5/7.5mm
- Standard Chuck Dia.
- φ42 Collet
Feed
Unit
- Rapid Feed Rate
- 20/20m/min
Tailstock
Unit
- Tailstock Spindle Taper
- /
Turret
Unit
- Standard Turret
- Gang tool，Power head
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2200*1600*1700mm
- Machine Weight
- 2500kg
