Model
SHL40P

Item specifics

Brand
ZOPO Intelligent
CNC
Fanuc/Siemens/Mitsubishi/GNC/KND
Spindle Nose
A2-5
Control Mode
Semi-closed loop

Review

Description

SHL40P

High Application

High Efficiency, Compact Design,

Low Cost

SHL40P

Φ400mm

Max.Swing Over Bed

300mm

Max.Turning Length

Φ320mm

Max.Turning Dia

A2-5

Spindle Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us

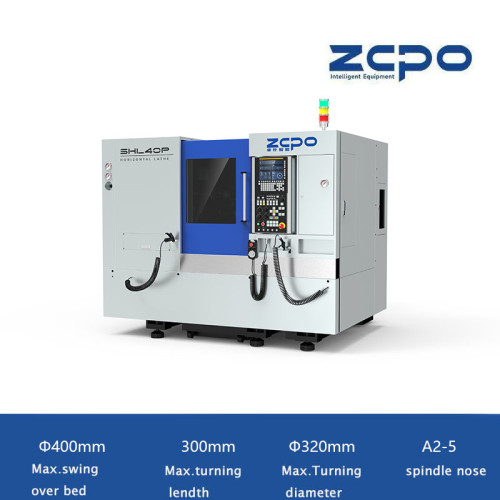

Appearance
SHL40P
Characteristic
结构紧凑

Compact Design


The compact design occupy smaller space, and easy to install and use.
The gang tool layout can quickly change tools, reduce tool changing time, and improve processing efficiency. Compared with some complex CNC machines, its structure is relatively simple and the cost is relatively low

High Rigidity Structure


The design of the body and components has high rigidity, which can ensure stability during the machining process, reduce vibration and deformation, and improve the processing accuracy.
高刚性结构
适用范围广

Flexible Processing


Suitable for processing various axis and disc parts, capable of completing various machining processes such as turning, drilling, boring, tapping, etc., and with high scalability, it can adapt to various internal and external automatic lines, improving machining efficiency
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ400mm
Max.Turning Length
300mm
Max.Turning Dia
Φ320mm
Max. Swing Over Carriage
Φ160mm
X/Z Axis Travel
460/365mm

Spindle

Unit

Spindle Hole Taper
A2-5
Max. Passing Bar Dia.
Φ42mm
Spindle Speed Range
50-5000mm
Power
5.5/7.5kW
Standard Chuck Dia.
Φ42Collet

Feed

Unit

Rapid Feed Rate
20/24m/min

Tailstock

Unit

Tailstock Spindle Taper
/

Turret

Unit

Standard Turret
Gang Tool
Nearby Tool Select
/

Machine

Unit

Machine Dimension
2200*1600*1700mm
Machine Weight
2500kg
