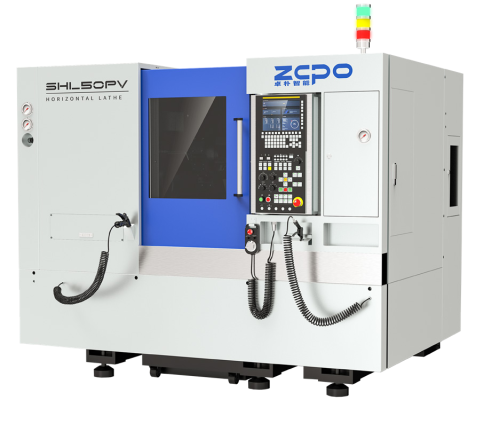

SHL50PV Interpolation Y-axis
- Model
- SHL50PV
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/GNC/KND
- Spindle Hole Taper
- A2-6
- Control Mode
- Semi-closed loop
Review
Description
SHL50PV
High Capability
Interpolation Y-axis
Suitable for processing
complex external keyways,
precision grooves.
Φ550mm
Max.Swing Over Bed
710mm
Max.Turning Length
Φ350mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Integral high-rigidity machine bed
Reasonable rib layout
Aging treatment for high stability
Dual X-axis structure
Capable of interpolation Y-axis
with±50 travel.
Split servo tailstock
Efficient and intelligent.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ550 mm
- Max.Turning Length
- 710 mm
- Max.Turning Dia
- Φ350 mm
- Max. Swing Over Carriage
- Φ350 mm
- X/Y/Z Axis Travel
- 200/±50/760 mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ50 mm
- Spindle Speed Range
- 50-4500 rpm
- Power
- 11/15 kW
- Standard Chuck Dia.
- 8'' inch
Feed
Unit
- Rapid Feed Rate
- 30/10/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5#
Turret
Unit
- Standard Turret
- 12T（Driven）
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 3500*1750*1950 mm
- Machine Weight
- 5200 kg
