SHL50BC High Capability Driven-Turret
- Model
- SHL50BC
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/Siemens/Mitsubishi/GNC/KND
- Spindle Hole Taper
- A2-6
- Control Mode
- Semi-closed loop
Review
Description
SHL50BC
High Capability
30 ° stepped rail bed，expansion capability，BMT45 Driven-Turret
Φ520mm
Max.Swing Over Bed
500mm
Max.Turning Length
Φ320mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us

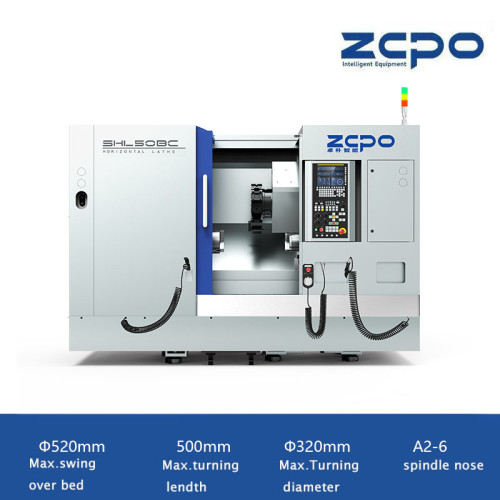

Appearance
Characteristic
Multi Function Integration
Integrate gang tools and milling/turning tools on one machine, reduces the times of transfers and clamping of workpieces between different machines, improves efficiency, and reduces costs.
High precision
Capable of processing parts with complex shapes and high precision requirements, ensuring the dimensional accuracy, shape accuracy, and surface quality of the parts.
Multi-Axis
It usually has multiple coordinate axes, which can achieve multi axis linkage processing and complete the machining of complex spatial surfaces and irregular structures.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ520mm
- Max.Turning Length
- 500mm
- Max.Turning Dia
- Φ320mm
- Max. Swing Over Carriage
- Φ320mm
- X/Z Axis Travel
- 200/550mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ50mm
- Spindle Speed Range
- 50-4500mm
- Power
- 11/15mm
- Standard Chuck Dia.
- 8'' inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5# T
Turret
Unit
- Standard Turret
- 12（Driven）T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2502*1723*1753mm
- Machine Weight
- 3800kg
