Model
SHL50B

Item specifics

Brand
ZOPO Intelligent
CNC
Fanuc/GNC/KND
Spindle Hole Taper
A2-6
Control Mode
Semi-closed loop

Review

Description

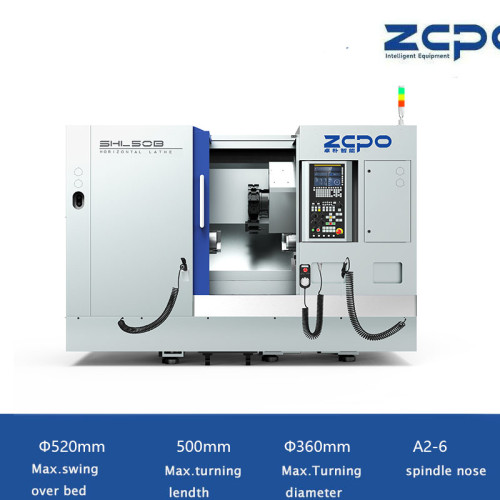

SHL50B

High Capability

30 ° stepped guideway machine bed,

High rigidity self-made servo turret,

High cutting ability

SHL50B

Φ520mm

Max.Swing Over Bed

500mm

Max.Turning Length

Φ360mm

Max.Turning Dia

A2-6

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us
Appearance
SHL50B
Characteristic
床鞍设计

Increased Span and Width Saddle


The hollow structure with a reasonable tendon type, has the characteristics of high rigidity and high stability, the best center symmetrical spindle design, the increased scraping contact area, the high -strength side pressure plate is locked, which has high rigidity and high thermal stability.

High Rigidity Servo Turret


Self developed high rigidity servo turret ensures processing stability and rigidity, suitable for large cutting and harder metal processing.
高刚性伺服刀架
水平阶梯导轨

Horizontal Stepped Guideway Bed

To provide a reliable foundation for lathes, high rigidity, high precision, and high stability.
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ520mm
Max.Turning Length
500mm
Max.Turning Dia
Φ360mm
Max. Swing Over Carriage
Φ360mm
X/Z Axis Travel
200/550mm

Spindle

Unit

Spindle Hole Taper
A2-6
Max. Passing Bar Dia.
Φ50mm
Spindle Speed Range
50-4500mm
Power
11/15mm

Feed

Unit

Rapid Feed Rate
30/30m/min

Tailstock

Unit

Tailstock Spindle Taper
5# T

Turret

Unit

Standard Turret
12(Servo)T
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
2502*1723*1753mm
Machine Weight
3800kg
