SHL60B High Capability Heavy cut
- Model
- SHL60B
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/Siemens/Mitsubishi/GNC/KND
- Spindle Hole Taper
- A2-8
- Control Mode
- Semi-closed loop
Review
Description

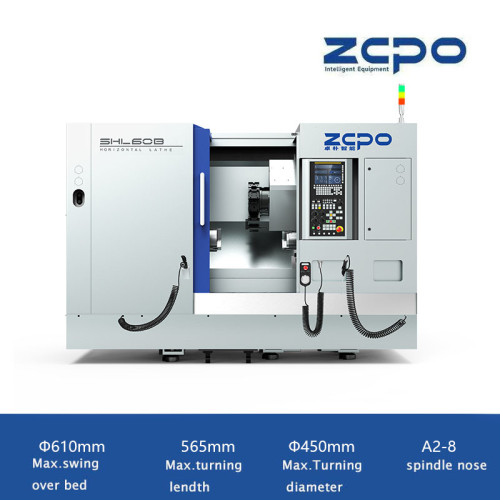

SHL60B
High Capability
High Rigidity, High Thermal Stability,
High Application
Φ610mm
Max.Swing Over Bed
565mm
Max.Turning Length
Φ450mm
Max.Turning Dia
A2-8
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Increased Span and Width Saddle
The hollow structure with a reasonable tendon type, has the characteristics of high rigidity and high stability, the best center symmetrical spindle design, the increased scraping contact area, the high -strength side pressure plate is locked, which has high rigidity and high thermal stability.
Horizontal Stepped Guideway Bed
To provide a reliable foundation for lathes, high rigidity, high precision, and high stability.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ610mm
- Max.Turning Length
- 565mm
- Max.Turning Dia
- Φ450mm
- Max. Swing Over Carriage
- Φ400mm
- X/Z Axis Travel
- 240/610mm
Spindle
Unit
- Spindle Hole Taper
- A2-8
- Max. Passing Bar Dia.
- Φ88mm
- Spindle Speed Range
- 50-3000mm
- Power
- 11/15mm
- Standard Chuck Dia.
- 10'' inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5# T
Turret
Unit
- Standard Turret
- 12（Servo）T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2950*1700*1865mm
- Machine Weight
- 4700kg
