SHL63P High-Application Domestic-Configuration
- Model
- SHL63P
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/Siemens/Mitsubishi/GNC/KND
- Spindle Hole Taper
- A2-8
- Control Mode
- Semi-closed loop
Review
Description

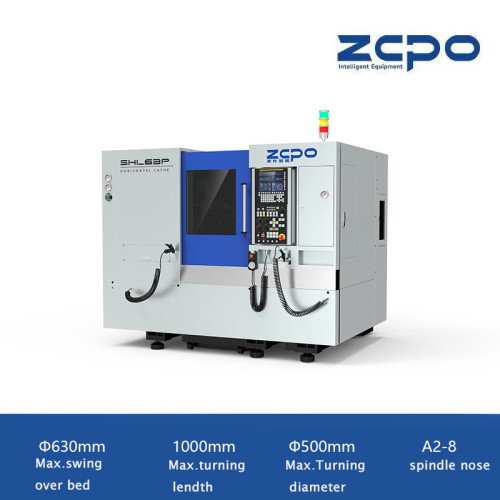

SHL63P
High Application
Wide Processing Range, High Rigidity
High Customization
Φ630mm
Max.Swing Over Bed
1000mm
Max.Turning Length
Φ500mm
Max.Turning Dia
A2-8
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Wide Processing Range
Capable of processing large or ultra large workpieces, adapting to the manufacturing needs of large structural components, molds, etc.
High Rigidity Structure
In order to support and ensure the stability and accuracy of large stroke motion, the 63P adopts a more reasonable casting process, with a sturdy structure and a high rigidity machine bed.
High Customization
According to different processing requirements, it has a high degree of customization in terms of configuration, functionality, etc
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ630mm
- Max.Turning Length
- 1000mm
- Max.Turning Dia
- Φ500mm
- Max. Swing Over Carriage
- Φ500mm
- X/Z Axis Travel
- 280/1070mm
Spindle
Unit
- Spindle Hole Taper
- A2-8
- Max. Passing Bar Dia.
- Φ65mm
- Spindle Speed Range
- 50-3500mm
- Power
- 15/18.5kW
- Standard Chuck Dia.
- 10″ inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5# T
Turret
Unit
- Standard Turret
- 12（Hydraulic）T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 4400*2200*2150mm
- Machine Weight
- 7500kg
