SHL60PC High Application Domestic Configuration
- Model
- SHL60PC
Item specifics
- Brand
- ZOPO Intelligent
- CNC
- Fanuc/Siemens/Mitsubishi/GNC/KND
- Spindle Hole Taper
- A2-6
- Control Mode
- Semi-closed loop
Review
Description

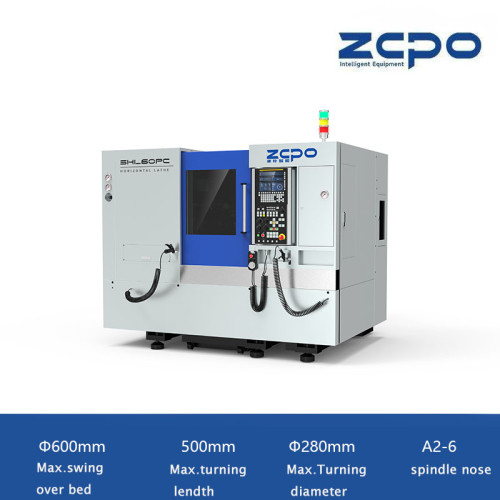

SHL60PC
High Application
High Accuracy, Stable, High Automation
Φ600mm
Max.Swing Over Bed
500mm
Max.Turning Length
Φ280mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
45 ° Angled Integral Bed
The machine adopts a 45 ° angled integral bed, and the material is HT300. Casted by resin sand technology, with a reasonable layout of internal ribs to ensure the overall rigidity of the machine
High Machining Accuracy
By accurately controlling the motion trajectory and cutting parameters of the tool through CNC system, high-precision machining can be achieved, ensuring the dimensional and shape accuracy of the parts
Linear Guideway
Imported 35# ball linear guideway, with high feed accuracy, low friction resistance, good rigidity, high resistance to vibration and deformation, which can enable users to achieve high processing accuracy and improve the speed of rapid movement, achieving high production efficiency
Spindle Box
A single spindlebox with a large span of 615, made of the same casting material and process as the bed, ensuring the stability and accuracy of the spindle operation.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ600 mm
- Max.Turning Length
- 500 mm
- Max.Turning Dia
- Φ280 mm
- Max. Swing Over Carriage
- Φ280 mm
- X/Z Axis Travel
- 210/560 mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ50 mm
- Spindle Speed Range
- 50-4500 mm
- Power
- 11/15 kW
- Standard Chuck Dia.
- 8'' inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5# T
Turret
Unit
- Standard Turret
- 12（Driven）T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2850*1865*1880 mm
- Machine Weight
- 4500 kg
